Design
- All product design is carried out in-house by our dedicated design engineers.
- We design to a range of industry standards including ASME VIII, PD5500, EN 13445, API 620/650, and Good Engineering Practice guidelines.
- For vessels intended for sale and use within the EU, we ensure full compliance with the Pressure Equipment Directive (PED) 2014/68/EU, and all relevant equipment is CE marked accordingly.
- Our in-house CAD draughtsman produces drawings to code and to each client’s specific requirements, using the latest AutoCAD software.

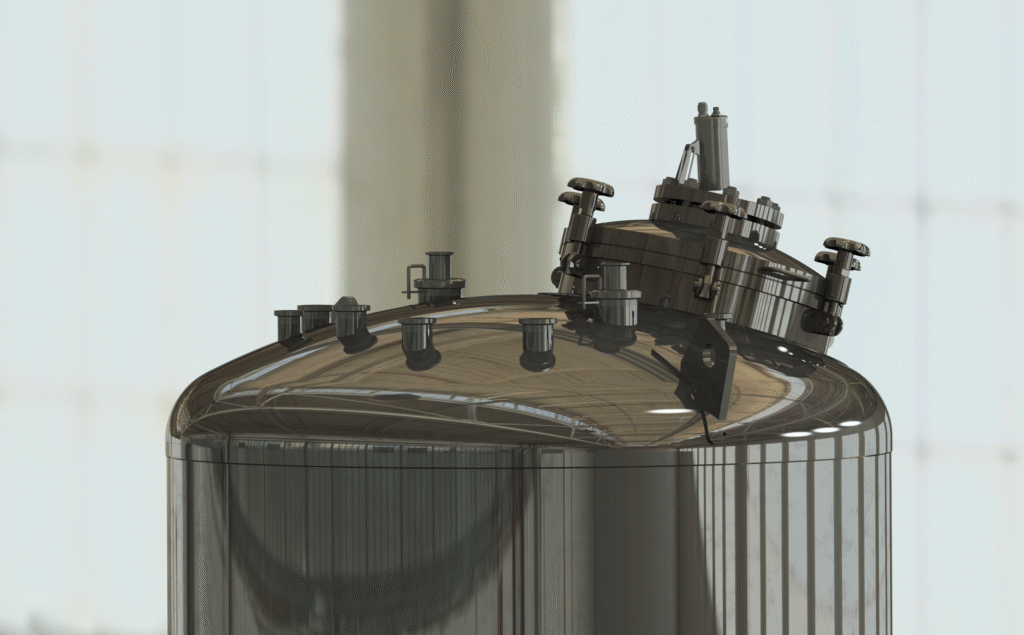

- Drawings are typically supplied in 2D format and can be provided in various file types, including DWG and PDF. We can also produce 3D drawings (STP files) in-house using our SolidWorks software.
We pride ourselves on flexibility and precision, ensuring every project starts with a solid, standards-driven design foundation.
Fabrication
- We are specialists in the design and manufacture of high-quality pressure vessels for the pharmaceutical, chemical, and food & beverage industries.
- We work with stainless steel and specialist metals, including Alloy 22, Duplex, Nickel Alloys, and Inconel.
- All vessels are designed and built to EN 13445, PD 5500, ASME VIII DIV 1 (NCMS), and Pressure Equipment Directive 2014/68/EU standards.
- Our team is fully coded to both ASME and EN welding codes, with regular training.
- We have extensive experience in manufacturing mobile pressure vessels, especially for the pharmaceutical sector.
- We offer a range of polished finishes — including electro-polishing — for both interior and exterior surfaces.

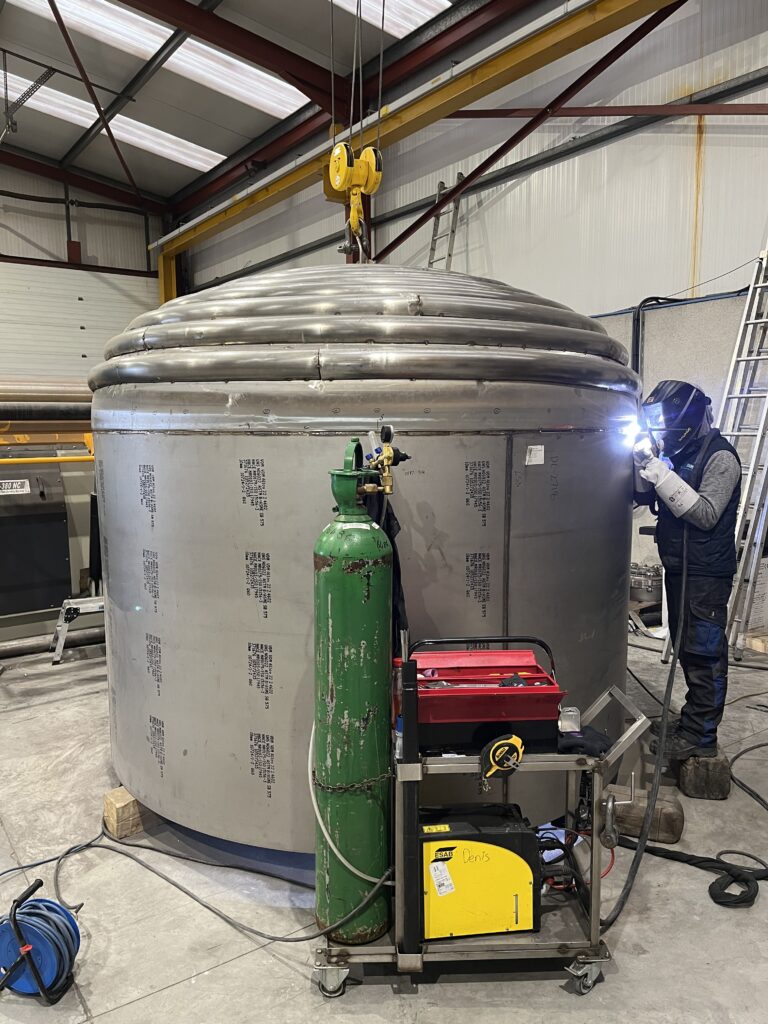

- Vessels can be supplied as single-skin, jacketed for heating/cooling, insulated, or stainless-steel clad.
- Multiple jacket designs can be tailored to specific heating and cooling requirements, tested in real-world applications.
Our fabrication process is built on decades of experience, technical expertise, and a relentless pursuit of quality.
Quality Control & Documentation
- Our company’s Quality Management System operates in line with ISO9001:2015 principles.
- Rigorous quality inspection procedures, including radiography, dye penetrant testing, and surface measurement.
- All non-destructive testing (NDT) performed exclusively by qualified and approved personnel.
- All project documentation prepared in accordance with our QMS and tailored to client requirements.
- Data manuals supplied in both hard-back ring binders and digital formats.
- All documentation securely retained for ten years, in line with statutory requirements.
Quality and traceability are at the heart of everything we do, ensuring peace of mind for every client and every project.
